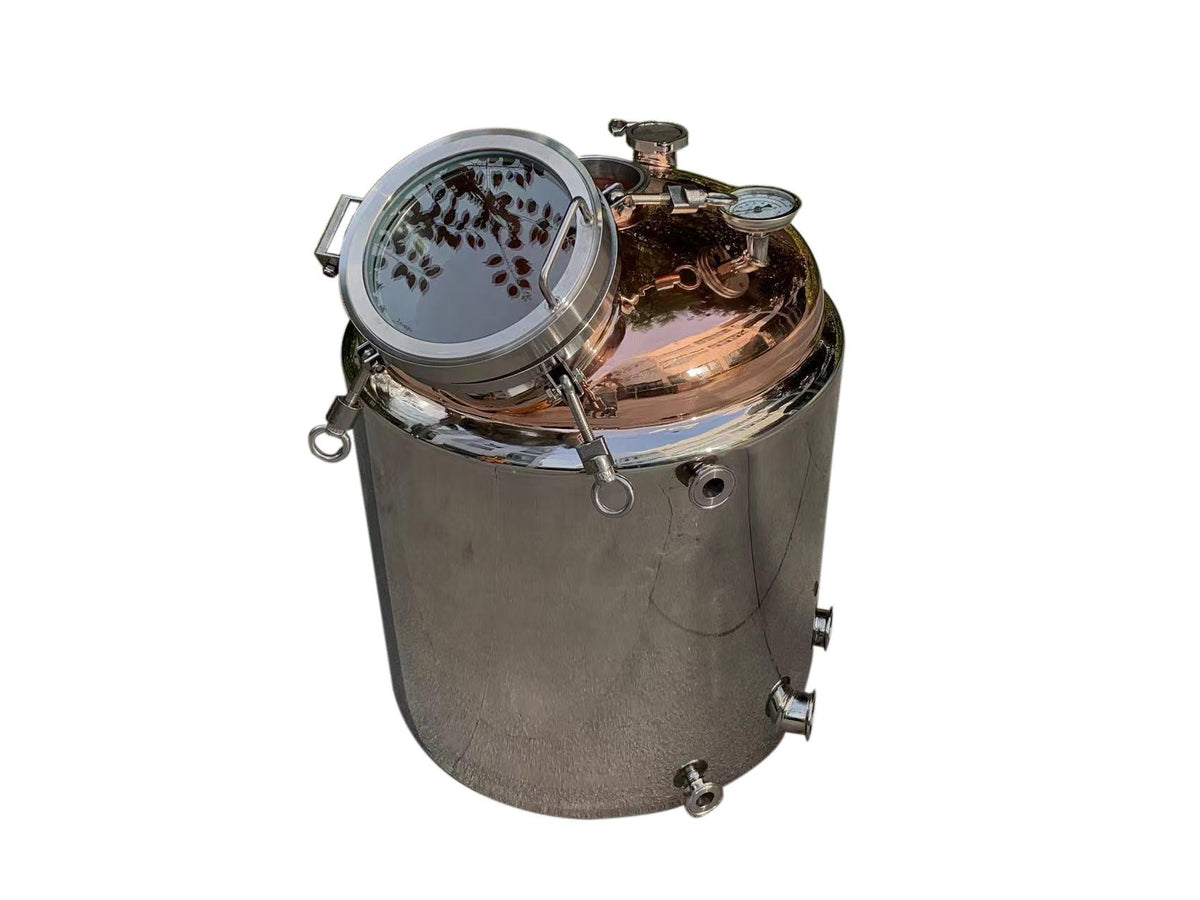

100L Copper Jacketed Still Boiler Bain-Marie

We offer two varieties of this jacketed boilers, the same design but in different material. One is the whole interior made of copper including copper dome and the other one is with copper dome and the side and bottom of the interior in stainless steel. It's a jacketed boiler the elements are not in contact with wash, the jacketed layer filled with heating fluid(oil or water) and elements heat the fluid then heat the wash, the jacket layer is rated at 0.05MPa we will supply a 0.03MPa PRV.

• Column port size: 4 inch
• Diameter: 55cm
• Height(from the bottom to the column port): Approx 83cm

Includes:

1* level meter

1* 2 inch drain valve

2* Heating elements

1* PRV(pressure relief valve) kit

2* 2 inch tri clamp end cap to block the 2 2 inch ports on the dome

1* Thermometer

Terms:

Lead time: 5-7 work days

We provide air shipping with to door service to the US(around 20 days to door), and use sea shipping+trucking with to door service to Australia, Canada, New Zealand, some European counties and UK, shipping time is around 40-60 days varies by counties.
