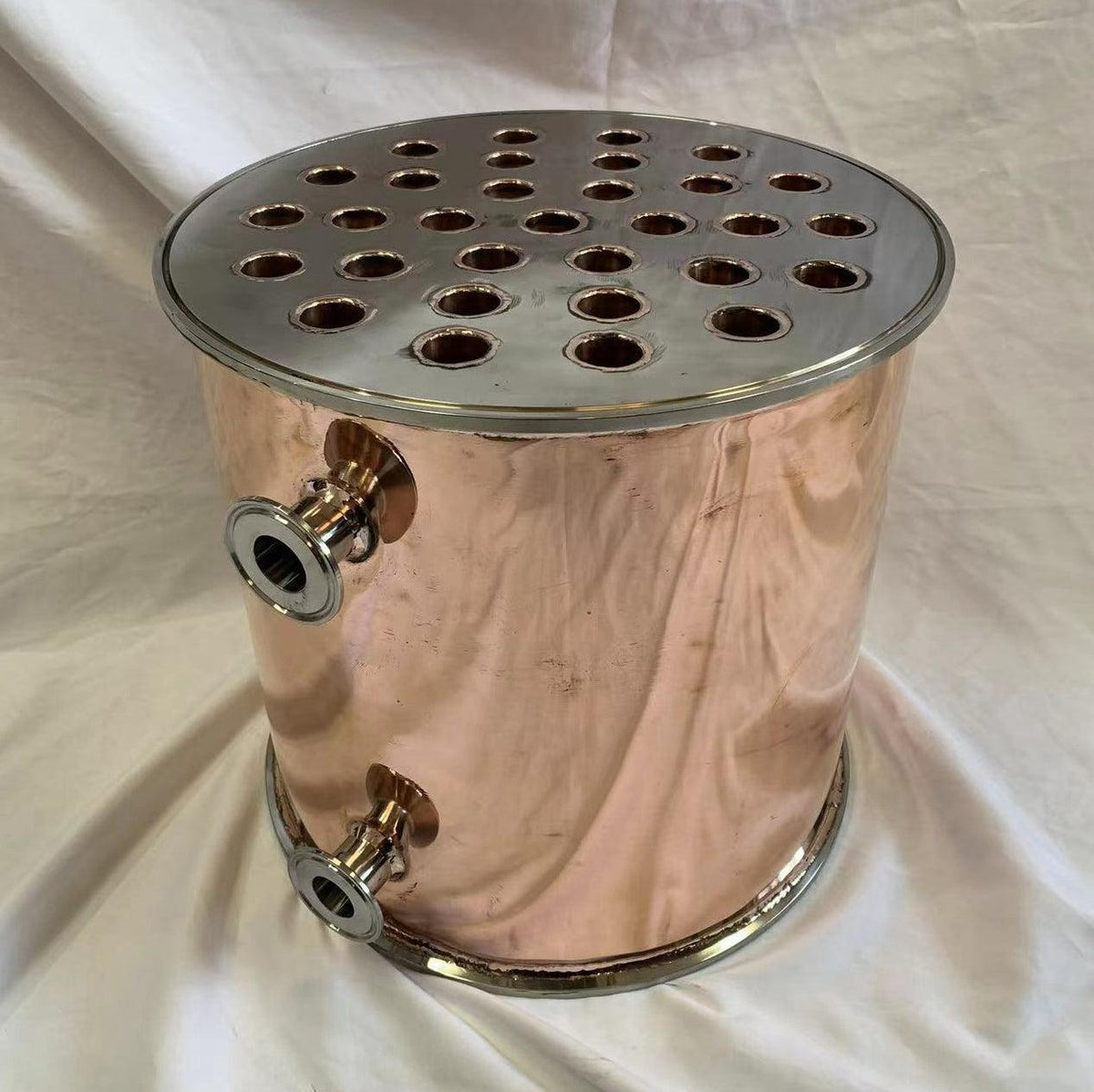

12 inch Copper Dephlegmator Alcohol Distilling

This 12 inch copper dephlegmator is specifically designed for use in both commercial and micro distilleries. It can be incorporated into a reflux column to efficiently capture the vapors and produce a higher proof of distilled alcohol. This makes it perfect for distilling vodka, gin, moonshine, neutral spirits in the most efficient and effective way possible.

Specifications:

Coolant water connection: 1 inch tri clamp(OD 50.5mm)

Material: T2 lead free copper 99.9%

Length: 300mm

Size: 12 inch Tri Clamp(OD of flange 319mm)

Number and size of cooling pipes: 31 Pcs, 21mm ID pipes

The outer shell and inner pipes are copper, the flange is made of stainless steel 304

We can also make custom dephlegmator, can make changes in the number and size of pipes, length, and the water connection, please contact us to get a quote.
