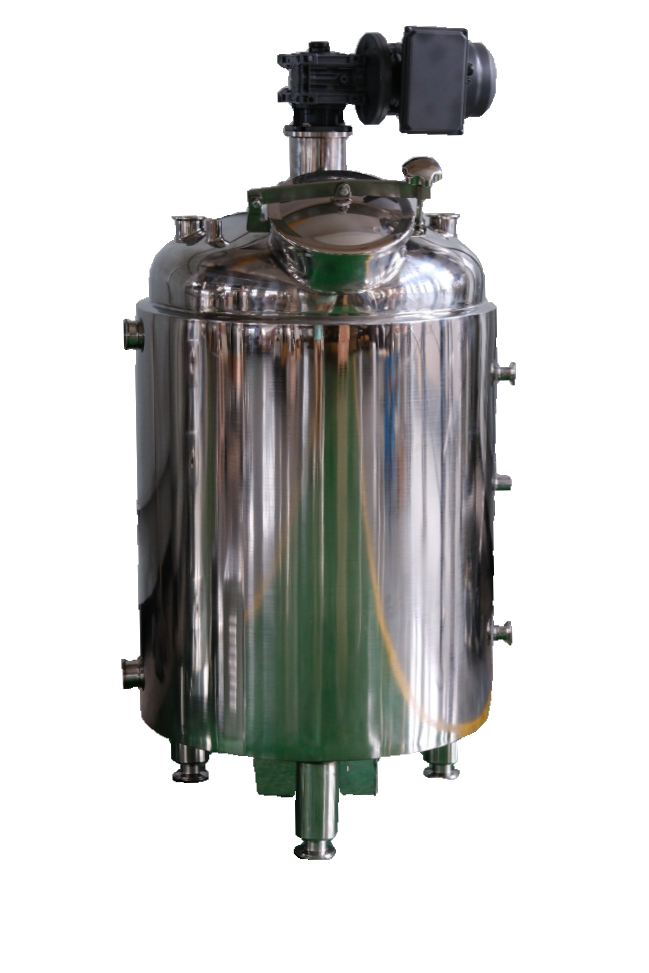

Jacketed Blending Tank with Agitator Stainless Steel
Jacketed Blending Tank with Agitator Stainless Steel
Our double jacketed mixing tank is designed for diverse uses including grain cooking and fermentation, dairy pasteurization, wax melting, chemical processing, and the preparation of jams and honey, providing efficient heating and blending capabilities.
100L Mixing Tank Drawing
Customizations: The boiler offers customizable options, including adjustable diameter and height to fit space constraints. Various agitators or scrapers, such as homogenizers, including its volts and phases, mixing speed, can be selected based on specific needs or fluid viscosity. Tank thickness can be modified to meet different pressure demands. Additionally, coils can be installed inside the tank or its jacket to provide cooling or heating as required. Material can be SS 316 upon request.
Specifications:
Thickness: 100L-1000L 3mm inside and outside, 2000L-5000L 4mm inside, 3mm outside
Pressure ratings: 0.1MPa
Made of SUS 304
Includes:
Stainless steel mixing tank with agitator(with heating elements, valve, thermometer)
Electric controller(PID control)
