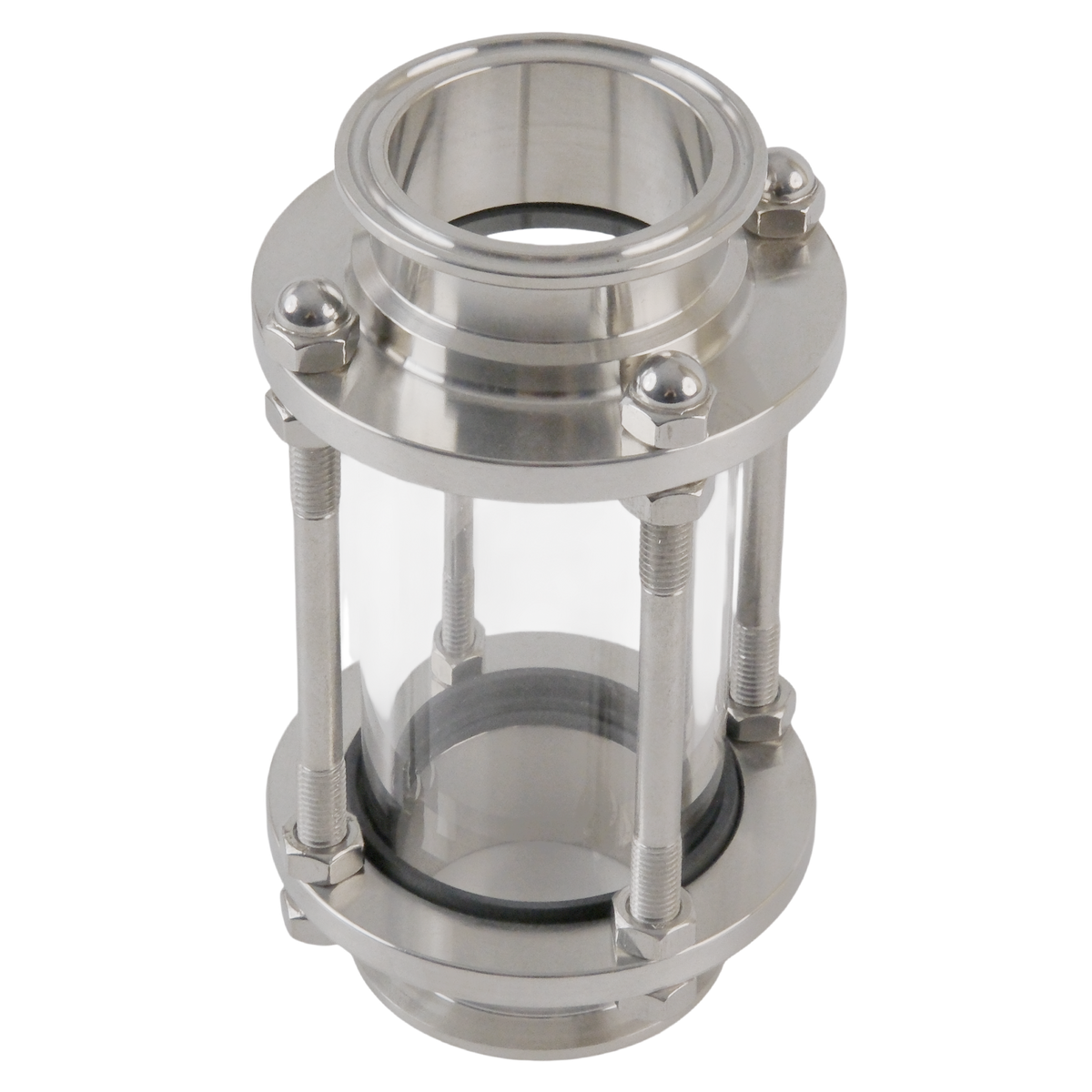

Tri Clamp In-Line Sight Glass

A tri-clamp sight glass is an inline sanitary fitting that provides real-time visibility into your process flow. The borosilicate glass window replaces a section of metal pipe, allowing you to monitor liquid movement, color, clarity, and foam formation instantly. Designed with standard tri-clamp ends for quick, tool-free assembly, it integrates seamlessly into brewing, food processing, and chemical applications. Built from SUS 304 stainless steel with a 6 Bar rated pressure, this fitting delivers durability and reliability in demanding environments. Available sealing options include silicone, EPDM, Viton, PTFE, and Buna to match your specific process requirements. Sizes range from 1" to 12" tri-clamp connections.

Specifications:

Material: SUS 304
Glass material: Borosilicate
Rated pressure: 6 Bar(1" to 6"), 2-3 Bar(10" and 12")

Working temp:-67°F to +392°F(when using silicone gaskets)

Sealing material: Silicone(can be epdm, viton, ptfe or buna upon request)

Size of L may slight vary by different batches of flanges.
